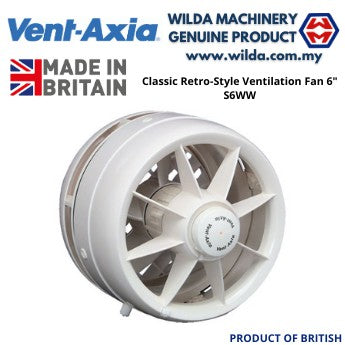

6" Ventilation Fan for glass partition mounting | VENT AXIA - S6WW | Wilda Machinery

Product Details

Round Design Window Fans

Round, easy to install, intake/extract fans with a spigot and ring fixing method which provides a watertight joint with most types of glazing.

Thermal overload protected motor which will run at any angle

Low noise, low density, 5 blade impeller

Operating temperature range -40 to +50°C

Made from weather resistant polymeric materials

Automatic time controller, fan speed controller and backdraught shutters are available separately

230 Vac mains powered.

Specifications

Attribute Value

Function Extraction, Intake

Air Flow 285m³/h

Noise Level 35dB(A)

Mounting Window Mounted

Face Diameter 216mm

Depth 233mm

Configuration Round
